    Laminated Material Heat Seal ESD Anti Static Bags 10x12 Inch 3mil Thickness

    Ask Lasest Price
    Brand Name : TOP
    Model Number : T-A-1012
    Price : Negotiable
    Supply Ability : 500000pcs/day
    Delivery Time : within 10 days
    • Product Details
    • Company Profile

    Laminated Material Heat Seal ESD Anti Static Bags 10x12 Inch 3mil Thickness

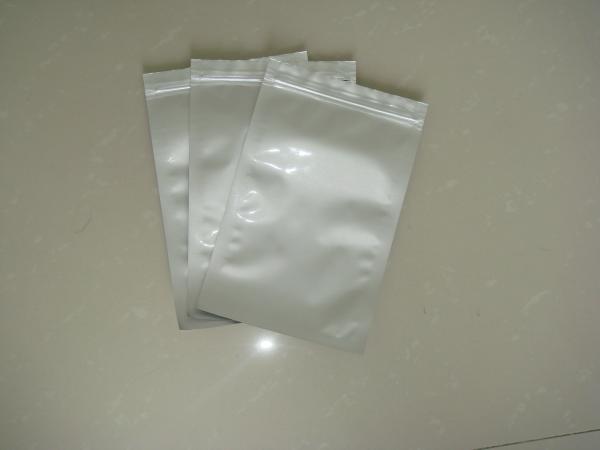

    3mil thickness open top metal in antistatic shield bags 10x12inch


    1. The kind of bag can keep static- sensitive components away from the potential static danger to the largest extent.its special four layer structure can create such effect as an inductive cover to separate the goods inside from the static field.


    The inner layer is made from ethane which can remove the static and avoid static generation inside the bag.


    this kind of hot seal bags is transparent,so the goods inside can be easily recoginzed from outside. surface resitance 10^8_10^11


    4 layers: Antistatic agent-polyester layer-aluminum shielding -anti-static polyethylene-Anti-static Layer.


    ItemUnitTest Standard
    Metal layer resistanceobm/sq.m<100
    Metal layer optical transimission40%-4
    Surfac resisitivityohm/sq<100
    Time for static removal5000-0v<0.01 second FTMS 101 B Method 4046
    Friction staticE1A541 Appendix CAvgTribo electic Nanocoulombs Quartz<13n/inTefion,13n/in
    Capacitance releaseVoltage difference -EA541<10V
    Anti- erosionFTMS 101CNo visble spots FTMS 101 C Method 3005
    Tensile Strengthlbs./inASTM D882 >18
    Tear Initiationlbs./inASTM D1004 >2.5
    Puncture resistanceP.S.IASTM D3420 >100
    Tear resistancelbs./inASTM D882 >8
    Oxygen barrierCC/100in-2/24hrsASTM D3985<0.5
    Heat seal temperatureF250-375
    Heat seal pressureP.S.I30-70
    Breaking tensile forceN/15mmGB/96-04-10
    Breaking elongation rate%GB/96-04-10
    Lamination strengthN/15mmGB/96-04-10
    Seal StrengthN/15mmGB/96-04-10
    SizeGB/96-04-10thickness +/-10%;length +/-3mm;width:+/-2mm

    Laminated Material Heat Seal ESD Anti Static Bags 10x12 Inch 3mil ThicknessLaminated Material Heat Seal ESD Anti Static Bags 10x12 Inch 3mil Thickness
